Memory errors are one of the most frustrating issues a Windows user can face. They can cause random crashes, slow performance, blue screens, and even serious data loss. That's where Windows Memory Diagnostic comes into play, a built-in tool that helps detect potential RAM problems.
However, many users find it challenging to set up the tool properly, understand the test results, and figure out what to do afterward. In this guide, I'll walk you through every step clearly and simply, from preparing your system running the Windows Memory Diagnostic Tool to optimizing your PC once issues are fixed.
Part 1: Preparation Before Running Windows Memory Diagnostic
Proper preparation is crucial before running any memory diagnostic tool. It not only ensures that you get accurate Windows memory diagnostic results but also protects your data from unexpected shutdowns or interruptions. Before diving into the Windows Memory Diagnostic test, take a few minutes to get your system ready.
Step 1: Save Work & Back-Up Data
Before running any major tests, always back up your important files. Memory errors can sometimes cause crashes during testing, risking data loss. I recommend using File History if you're on Windows or saving your files to a reliable cloud storage service like OneDrive.
I personally use OneDrive because it automatically syncs my documents and photos without me having to think about it. No worries, even if something goes wrong during testing!
Step 2: Check System Compatibility
Make sure your device is running Windows 7 or later. Windows Memory Diagnostic Tool is not available on older versions like Windows XP or Vista. To check your system version:
Press Windows + R, type winver, and hit Enter.
Always confirm the OS version first. One time, I tried running a diagnostic on an old PC, only to find out it wasn't supported. It was a total waste of time!

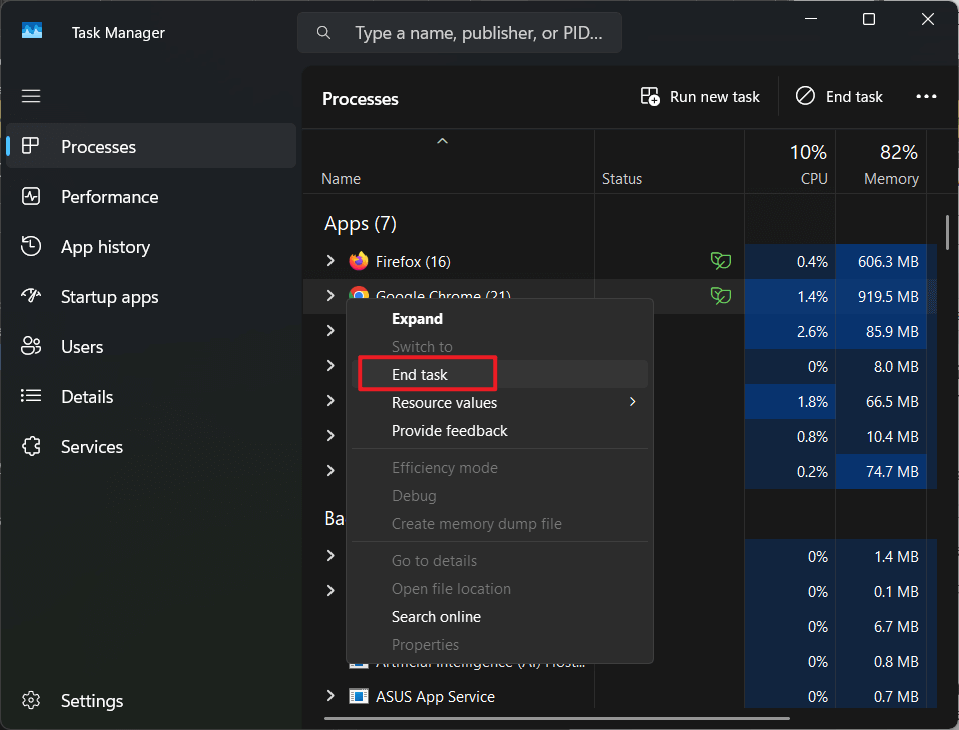

Step 3: Close Background Apps
For the most accurate Windows memory diagnostic report, close any unnecessary programs that are running. Here's how:
Open Task Manager (Ctrl + Shift + Esc)
End tasks that you don't need during the test.
When I first ran the tool with a bunch of apps open, the diagnostic results were a bit inconsistent. Shutting them down made a noticeable difference!
Step 4: Connect to Power
If you're using a laptop, plug it into a charger. The memory test can take 20 minutes or longer, and the last thing you want is for the battery to die halfway through.
Even on a full charge, I always keep my laptop plugged during diagnostics. It's better to be safe than sorry!
Part 2: Run Windows Memory Diagnostic to Test RAM
Once your system is ready, it's time to launch the Windows Memory Diagnostic Tool. This built-in feature helps you scan your computer's RAM for possible hardware or software errors, all without needing any third-party apps.

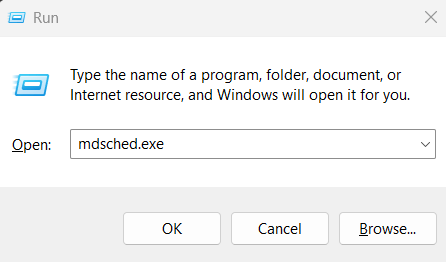

Step 1: Launch the Tool
Press Windows + R to open the Run dialog.
Type mdsched.exe and press Enter.
The Windows Memory Diagnostic window will pop up.
I usually pin this command to my Start menu for faster access when troubleshooting multiple machines. It's a tiny trick that saves time!

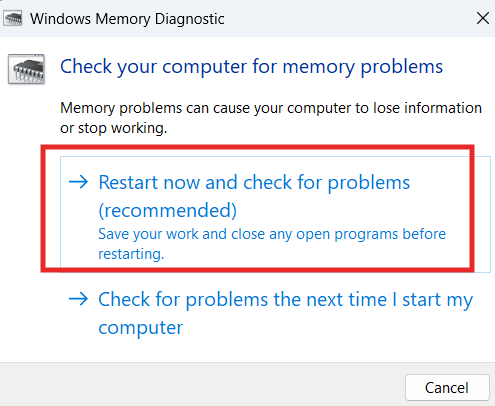

Step 2: Choose Test Mode
You'll be given two options:
Restart now and check for problems (recommended)
Check for problems the next time I start my computer
For immediate testing, select Restart now and check for problems. Your PC will reboot and start scanning automatically.
I always choose the immediate restart unless I'm in the middle of other work. Quick action helps spot urgent RAM issues sooner.
Step 3: Monitor the Process
After rebooting, the diagnostic will start scanning your memory. The basic test usually takes 20–30 minutes, depending on your system and the test type (basic, standard, or extended). You'll see a blue screen with a progress bar and status updates.
Keep an eye out for any error codes like 0x0000001A - these often point to memory issues that need deeper inspection.
I usually let the scan run without touching the laptop. Moving too fast to interrupt or restart can sometimes cause false readings.
Step 4: Reboot & Access Results
Once the test finishes, your PC will reboot automatically. To view the results:
Press Windows + X, then select Event Viewer.
Navigate to Windows Logs > System.
Look for events with the label MemoryDiagnostics-Results.
Filtering the Event Viewer by Event ID 1101 or 1102 makes it super easy to find the test results, especially when you have tons of system logs piling up.
Part 3: Interpret Results and Fix Memory Issues
Running the Windows Memory Diagnostic Tool is only half the battle; the real work begins with interpreting the results and fixing any problems it finds. Whether it's faulty RAM or a driver conflict, acting on the findings properly is crucial for a stable, high-performing system.
Step 1: Locate Event IDs
To check if memory errors were detected:
Open Event Viewer.
Go to Windows Logs > System.
In the right pane, click Find and search for "MemoryDiagnostics-Results."
Look for Event ID 1101 or 1102, which contain the memory test results.
Don't panic if you see technical jargon. Focus on whether the report says "no errors were detected" or mentions "hardware problems detected." That distinction is your starting point.
Step 2: Resolve Common Issues
Faulty RAM
If the diagnostic finds issues:
Reseat your RAM modules: Shut down your PC, unplug it, open the case, and carefully remove and reinstall your RAM sticks. Make sure they're securely locked in place.
Replace faulty RAM: If reseating doesn't help, it's likely a physical defect. Make sure any replacement RAM matches your motherboard's compatibility list.
I always reseat RAM before rushing to replace it. Sometimes, a slight misalignment during earlier installations is all it takes to cause errors!
Driver Conflicts
Sometimes memory errors aren't due to hardware but driver issues:
Open Device Manager.
Update drivers, especially for critical components like your chipset, graphics card, or network adapter.
Prefer downloading drivers from official OEM websites rather than third-party sites.
Updating drivers manually might seem tedious, but trust me, automatic tools can sometimes miss the latest, stable releases.
Step 3: Retest After Fixes
After reseating RAM or updating drivers, always re-run Windows Memory Diagnostic to confirm if the issue is resolved. If you still see errors, it might be time to escalate: testing with advanced third-party tools like MemTest86 or consulting a technician.

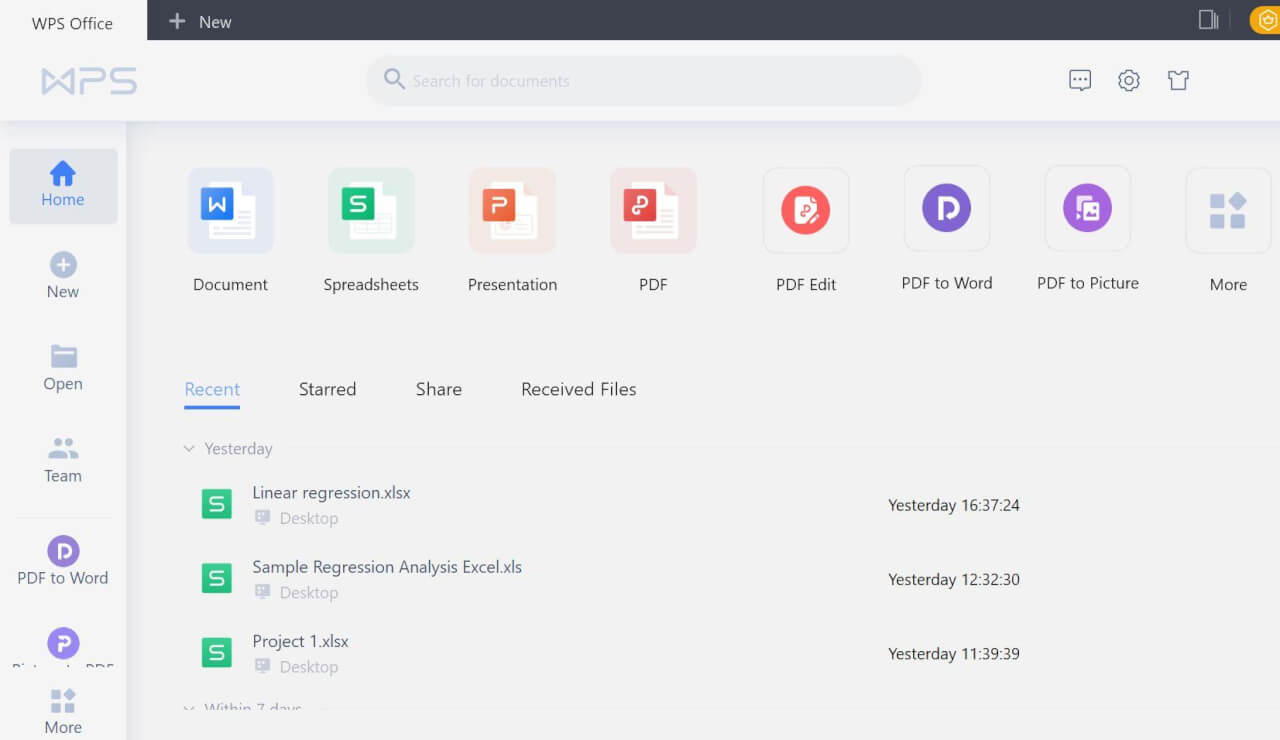

Part 4: Optimize Your PC with WPS Office Post-Repair
After diagnosing and fixing memory issues, it's the perfect time to think about keeping your system lightweight and efficient. One easy way? Choose software that's optimized for performance, like WPS Office.
Heavy programs can put unnecessary stress on your system memory, but WPS Office offers full productivity tools while consuming far fewer resources compared to traditional suites.
Why Choose WPS Office After Memory Repairs
Lightweight and Efficient: WPS Office uses up to 30% fewer resources than heavier office programs. This is ideal after repairing memory faults if you want to avoid overloading your RAM again.
100% MS Office Compatibility: You can open, edit, and save Word documents, Excel spreadsheets, and PowerPoint presentations seamlessly. No need to worry about file format issues.
Cloud Sync Across Devices: Work on your documents whether you're on Windows, Mac, iOS, or Android using WPS Cloud. It ensures your files are updated and accessible anytime, anywhere.
Secure, Fast Collaboration: Instead of attaching large files via email, WPS Office lets you generate secure sharing links. Lightweight collaboration without heavy software bloat.
After fixing my own laptop's memory issues, I switched from a bulky office suite to WPS Office, and the improvement was obvious. No random freezes or slowdowns when multitasking, even with multiple documents open!
FAQs
Q: How long does the Windows Memory Diagnostic test take?
The Basic test usually takes about 5–15 minutes.
The Extended test, which checks more thoroughly, can take 1–2 hours, depending on your RAM size.
If you suspect serious memory issues, it's worth running the extended test overnight, which is what I usually do for deep troubleshooting.
Q: Can I use Windows Memory Diagnostic on Windows 7?
Yes! The Windows Memory Diagnostic Tool works the same way across Windows 7, Windows 8, Windows 10, and Windows 11. Just follow the same steps outlined earlier.
I've personally run it on a Windows 7 laptop since 2011, and it worked flawlessly. Just make sure your device is stable before testing.
Q: What if no errors are found, but my PC still crashes or freezes?
If the tool doesn't find any errors but issues persist:
Try using third-party memory testing software like MemTest86 for a second opinion.
Also, check other hardware components like the hard drive or power supply, as they can cause system instability.
After one frustrating experience, I learned that sometimes the RAM isn't the villain; bad hard drives or overheating CPUs can act similarly. Always double-check!
Summary
Diagnosing and fixing memory errors might sound intimidating, but with the Windows Memory Diagnostic Tool, the process becomes straightforward and manageable. By preparing your system properly, running the test step-by-step, interpreting the results carefully, and addressing any issues like faulty RAM or driver conflicts, you can restore your PC's stability and performance.
And once your system is repaired, it's just as important to keep it optimized. That's why I recommend switching to WPS Office, a lightweight, powerful productivity suite that helps you minimize system load while maximizing efficiency. After all, a smoothly running PC deserves software that's just as streamlined.
Download WPS Office today and enjoy a faster, more reliable computing experience without sacrificing productivity.
